Technical Parameters
| Frequency Range |
100Hz-20kHz (-3dB) In Room Response |
| Power Handling |
60-120 Watts recommended amplifier power |
| Sensitivity |
90dB for 2.83 volts at 1 meter |
| Impedance |
8Ω (minimum 4Ω) |
| Configuration |
Full range |
| Enclosure Type |
Sealed |

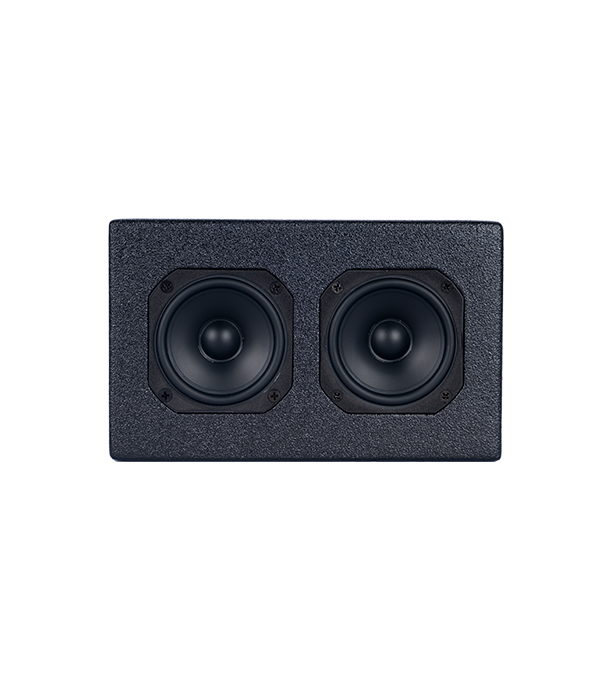

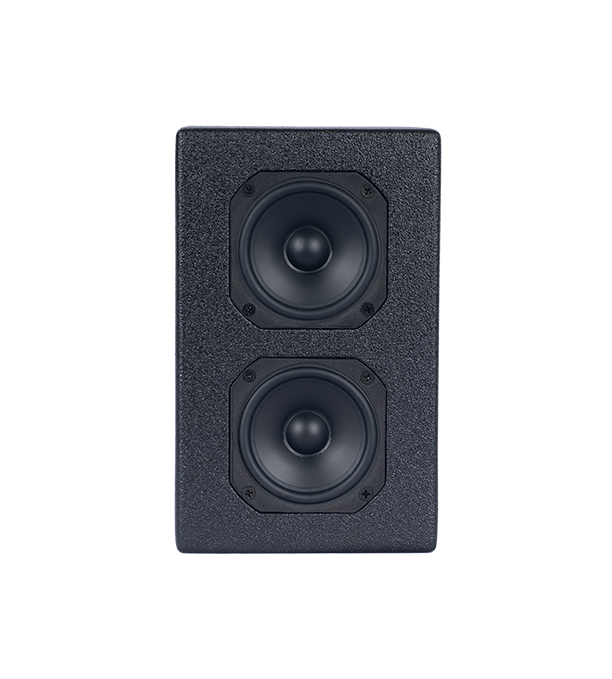

| Driver |
Dual 3-1/2′′ Full Range Paper Cone Woofer |
| Input Terminal |
Push To Hold type |
| Dimensions |
230mm high x 147mm wide x 142mm deep |

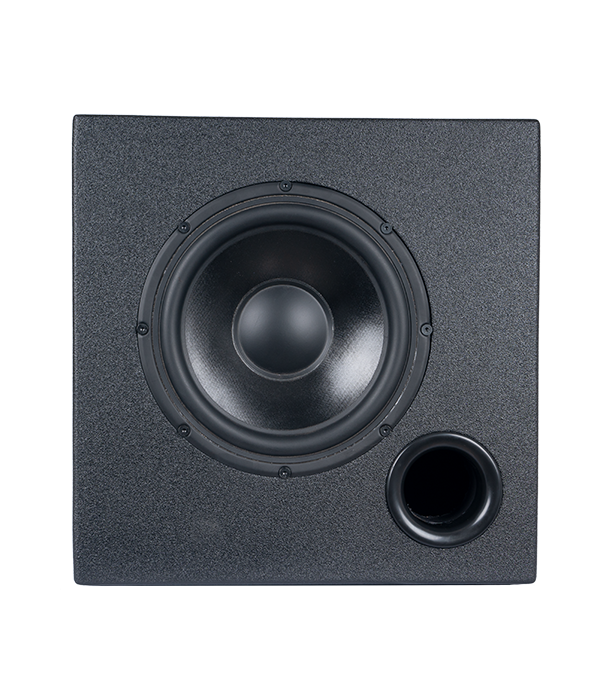

Sub woofer
| Frequency Range |
25Hz-200Hz In Room Response |
| Power Handling |
70-210 Watts RMS |
| Sensitivity |
87.5dB for 2.83 volts at 1 meter |
| Impedance |
8Ω |
| Enclosure Type |
Bass reflex front vented |
| Driver |
Low Frequency Driver-Nominal-10” diameter coated paper cone, and a ferrite magnet motor
with aluminum shorting ring for improved distortion performance. |
| Dimensions |
380mm high x 380mm wide x 534mm deep |
|
